Stadium lighting

Products

S1 LED stadium light

Star Spot S1 Stadium Light 1.200W to 600W 2.Highly energy efficient - up to 150 lm/W 3.IP66 for indoor and outdoor use under all conditions. 4.Robust and modern design. 5.Long lifetime due to high quality LED chips and drivers. 6.10KV Surge Protection. 7.5 Years warranty
Detail

The S1 Star Spot Stadium Light is designed for industrial and area lighting ,harboring the newest LED lighting tech- nology for a wide range of applications. High grade materials and perfect workmanship provide excellent cooling abilities, low maintenance costs and a long lifespan. The enormous light output and the high efficiency make this modular high bay an ideal replacement for all sorts of traditional lamps.

S1 Sport light
Model No. S1-200W S1-300W S1-400W S1-500W S1-600W
Product Dimension  344*358*128(mm) 444*358*128(mm) 546*362*128(mm) 646*362*128(mm) 746*362*128(mm)
Efficiency  150±10lm/W

Luminous Flux (±10%)
30000±2000lm

45000±3000lm

60000±4000lm

75000±5000lm

90000±6000lm
LED Quantity  234 PCS  EMC 3030
351 PCS  EMC 3030
468 PCS  EMC 3030
585 PCS  EMC 3030
702 PCS  EMC 3030
CCT  4000K;5000K;5700K;6500K
Ingress Protection IP IP65
Color Rendering Index  Ra>70

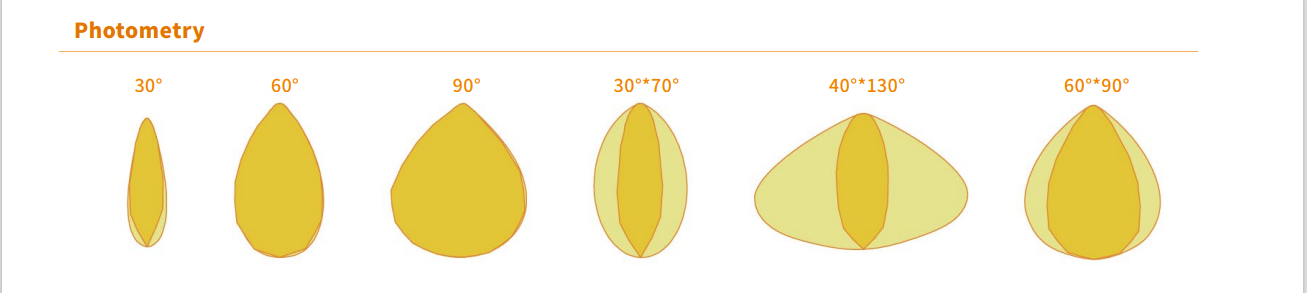

Beam Angle  30°/60°/90°/30*70°/40*130°/60*90°
Driver Brand  TOMCARLINE /BQ/MOSO/INVENTRONICS
Input Voltage  100-277V(MFDXXX)
Power Factor  0.95
Frequency  47-63HZ
Driver Type  Constant Current (CC)
Luminaire Net Weight  6kg 7.4kg 10.8kg 12.3kg 13.7kg
Packing Information  1PCS/CTN 1PCS/CTN 1PCS/CTN 1PCS/CTN 1PCS/CTN
Export Carton Size  40*42*18(cm) 50*42*18(cm) 60*42*18(cm) 70*42*18(cm) 80*42*18(cm)
Gross Weight   7.2kg 8.8kg 12.4kg 14.1kg 15.7kg
Material  Housing  aluminium 6063-T5
Optics  PC lens
Finish Sandblasting anodized bright silver
Fixture Color  silver
Mounting Option Bracket installation
Ambient Temperature  -40~+50
Life Time  50.000 hours
Warranty  5Years
Dimmable  0-10V /
Intelligent Control  Dali 2 / DMX
Optional Accessories  voltage 120-347V/277-480V
Safety chain
Certification CE Rohs CQC
advantage 1. High Luminous efficiency; 2. Lightweight

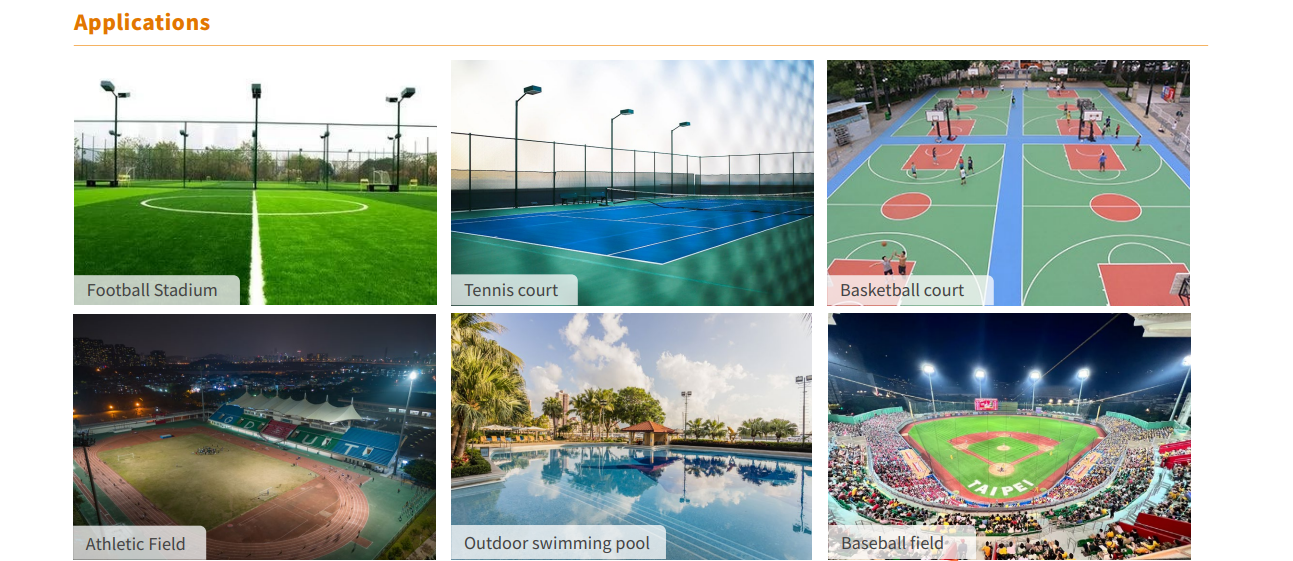

Product Usage Occasion Mainly used for individual buildings, exterior wall lighting of historical building clusters, internal and external transparent lighting of buildings, indoor local lighting, green landscape lighting, billboard lighting, and other lighting

没有找到对应的参数,请添加到属性表中
